Wet End, Waterway EX2, 2.5hp, 2"mbt, 48/56 Frame

Wet End, Waterway EX2, 2.5hp, 2"mbt, 48/56 Frame

SKU:
310-2990
$129.00
Write a Review
Description
 Waterway Plastics
 310-2990
 _310-2990 , 370133

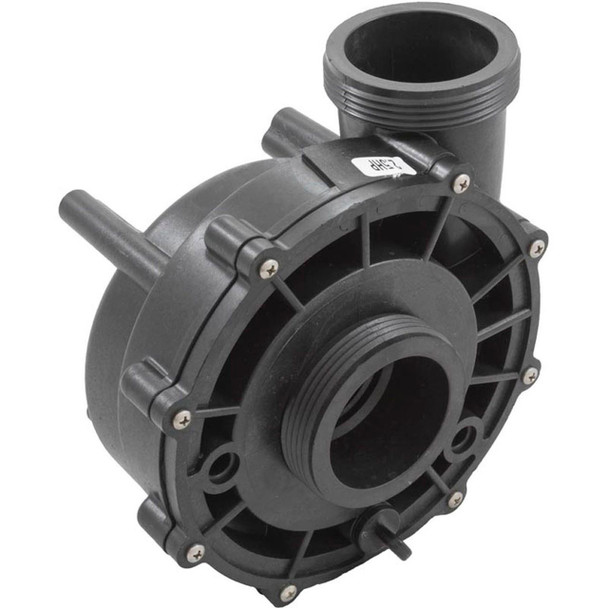

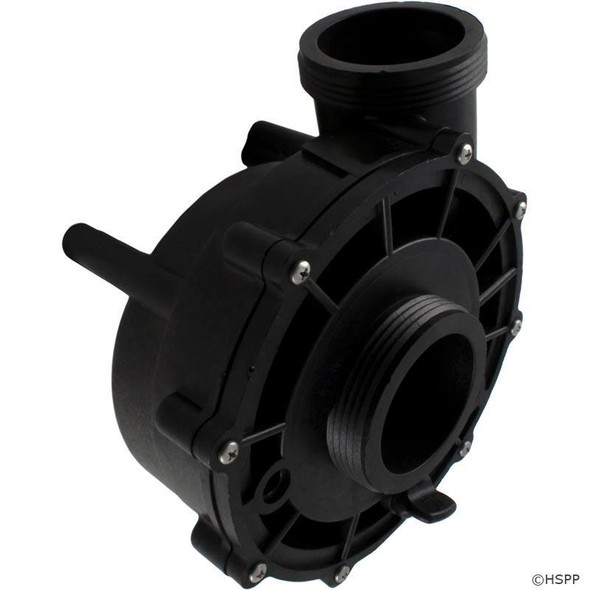

Waterway EX2 Wet End

Side discharge, 2"mbt suction/discharge, 48/56 frame wet end for the Waterway EX2 pump. This wet end is used with a 3.0hp, 48/56 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90° to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws. Motor and unions sold separately.

Manufacturer Waterway
Pump Model EX2
Motor Frame 48 Frame Thru-Bolt, 56 Frame Thru-Bolt
Drain Plug Location 4,6,9 o`clock
Suction Style Center
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 2"
Discharge Style Side
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 2"
Horsepower 2.5hp
Volute Fastening Type 8 Screws
