This part includes only the replacement box with heater.
This Control System is WiFi Compatible, please see Tech Tips for information.

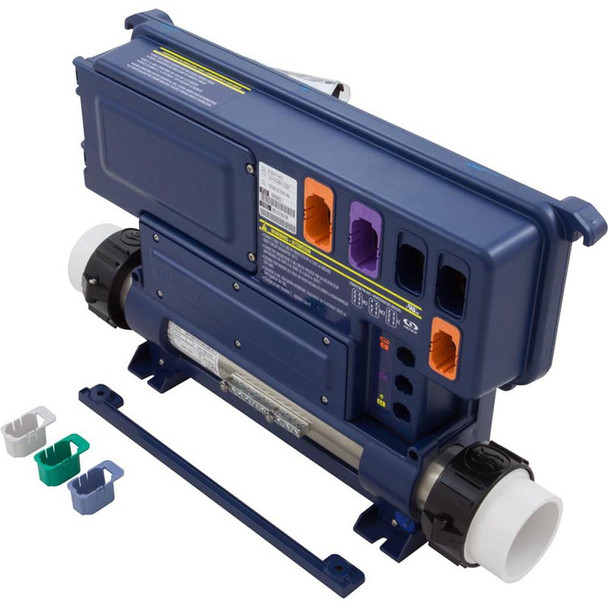

IN.XE-5-11-H4.0-1-2-B-O-D-32K-GD1
This innovative in.xe Aeware by Gecko spa control system contains available circuits as described below. To activate the circuit, simply remove the colored key enclosures from the field unit, replace the blanks on the new control box with the key enclosures, and plug in the existing cables. That’s it! Features:
High Current Pump 1 circuit, 1 or 2 speed, 115v or 230v, 20A max
High Current Pump 2 or HC Blower circuit, 1 speed, 115v or 230v, 20A max
Two Low Current AC relay-controlled circuits for blower or ozonator, 115v or 230v, 5A max
One Low Current AC direct power circuit for audio/visual accessories, 115v, 5A max
4.0kW heat.wav heater, 2”s tailpieces x 15” length
Installation and Instruction manual
Two-Year manufacturer’s limited return and repair warranty
Control Box Dimensions
Height
Width
Depth
11-3/4"
19-5/8"
5"
