Description
Balboa Water Group
G6406
With 7 relays, the BP7 has 32 different setups and can power aspa with 1-3 pumps, including Microsilk systems. Can also replace any Balboa BPSystem* while using the existing topside that is already installed on the spa.Will replace any Balboa or other brand’s non-low flow system* when you match itwith any TP or SpaTouch topside panel.
Features:
- Supports all TP and SpaTouch topsides
- Supports all BP ancillary products (ControlMySpa, BBA, CZ, and Status Pro)
- Plug-N-Click Heater
- WiFi Ready (Not included- accessory WiFi Unit) 50350-07

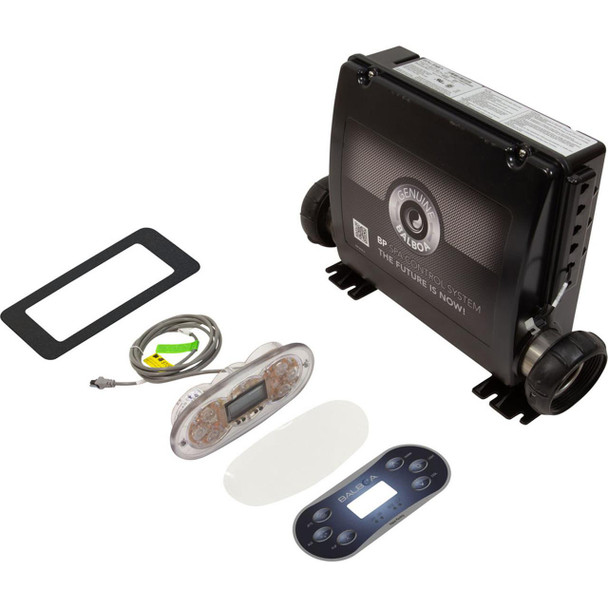

Kit Includes:
- G4361 - Balboa BP7 System with 4.0kW Heater
- 55676-09 - Balboa TP600 Panel, Less Overlay -Measurements: W=7.1" (18.03cm) , H=3.5" (8.89cm)
- 12762 - TP600 Panel Overlay (6-Button, Oval)
- 25098 - Wire Assembly, 8ft for spa light
- 15380 - Panel Bezel (Adapter Plate)
-CAN REPLACE ANY BP BALBOA SYSTEM* - While using the existing topside that is already installed on the spa.
-CAN REPLACE ANY BALBOA VS OR EL SYSTEM* - When you match it with any TP or SpaTouch™ topside panel.
- *Both the Circ pump and Ozone can be converted to 120V, however, they will be the same voltage after conversion. (Both 120V or both 240V.)
- *If a 24-hour circulation pump is being installed, it must have no less than a 23 GPM flow. Laing, Grundfos, or Waterway Tiny Might pumps do not perform at this rate and cannot be used.
Kit includes: system, panel, panel adapter plate, light cord and overlay(s)
Number Of Appliances | 3 |
Manufacturer | Balboa Water Group |
Model | BP7 |
Supply Voltage | 230v - 3 Wire, 230v - 4 Wire |
Heater Type | Fixed - Bottom |
Heater Wattage | 4.0kW |
Topside Included | TP600 |
Circ Pump Ready | Optional 115v/230v |
Auxiliary Topside Ready | Yes |
Fiber Optic | No |
Accessory Ready | Yes |
Wi-Fi Compatible | Yes |
50/60 HZ | 50Hz, 60Hz |
