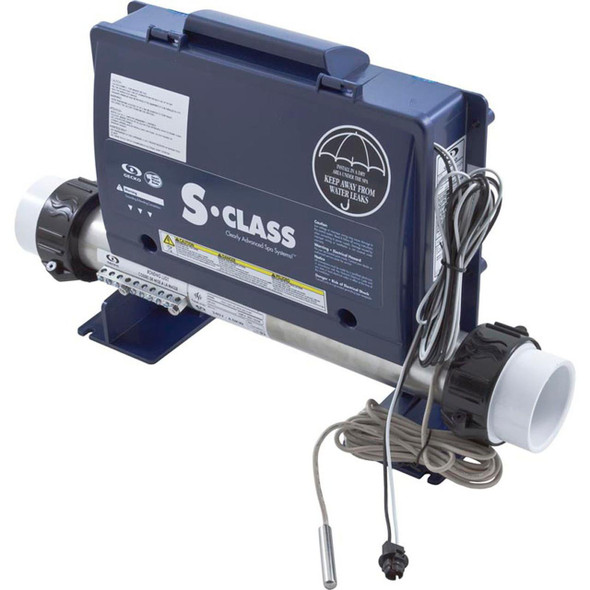

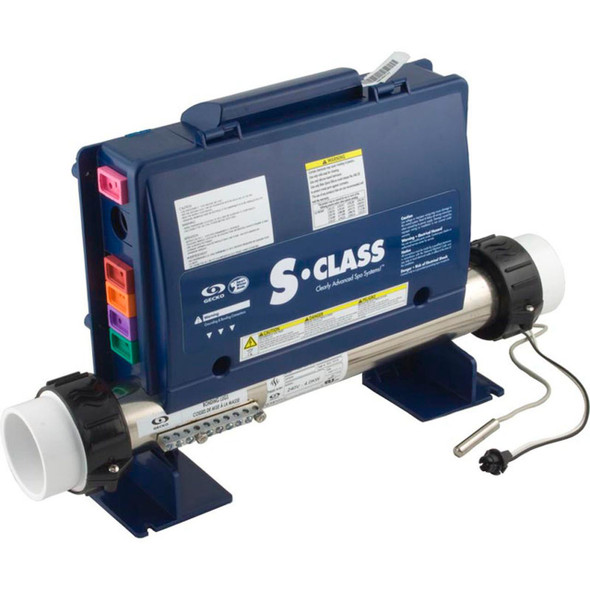

0202-205209, Gecko S-Class Control Box, Less Heater, P1, P2, Bl,CP, OZ, L, 115v/230v

The Gecko S-Class is comparable to the Gecko in.ye-5 control sytem. Gecko S-Class series of spa controls presents versatility and compact size all in one package.  Among its many features:

• Automatic time-out on all outputs
• Sensor failure detection
• Ozone management
• Programmable filter cycles
• High-limit protection
• Pressure switch failure detection
• Current limiting option
• Smart Winter Mode
• Temp. accuracy within ± 1°F
• Filter cycle over temp protection

This S-Class control box only contains circuits fitted with JJ Mini style receptacles that will operate the following equipment:

• Pump, 1-Spd or 2-Spd, 115/230v
• Pump, 1-Spd, 115/230v
• Blower 115/230v
• Circ Pump
• Ozone, 115/230v
• Light 12v
Control Box Dimensions
