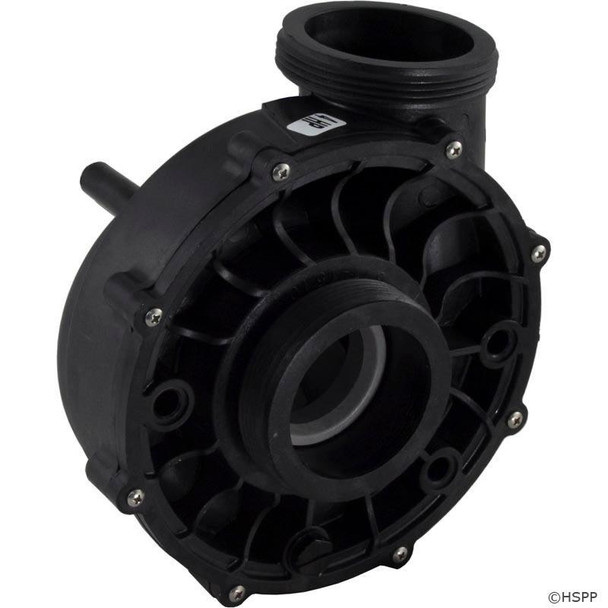

310-0140 Wet End, WW Viper 4.0hp 2-1/2"mbt 56fr Waterway Viper Wet End
Side discharge, 2-1/2"mbt suction/discharge, 56 frame wet end for the Waterway Viper pump. This wet end is used with a 4.0hp, 56 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90° to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws.
Motor and unions sold separately. RECOMMENDED PARTS:
35-126-1156 Motor, Century, 4.0 Horsepower, 230v, 2 Speed, 56 Y Frame
35-126-1156W Motor, Century/WW, 4.0hp, 230v, 2-Speed, 56 Y Frame
35-184-1156W Motor, US Motor/WW, 4.0hp, 230v, 2 Speed, 56 Y Frame
88-375-1050 Lube Tube, Roper Products, 4oz, with PFTE
88-375-1050 Lube Tube, Roper Products, 4oz, with PFTE
89-270-1193 Pump Union, 2-1/2" Female Buttress Thread, 2-1/2" Slip
