Wet End, WW EX2 2.5hp 2"mbt 48fr (1)

Wet End, WW EX2 2.5hp 2"mbt 48fr

SKU:
34-270-1742
$107.00
Write a Review
Description

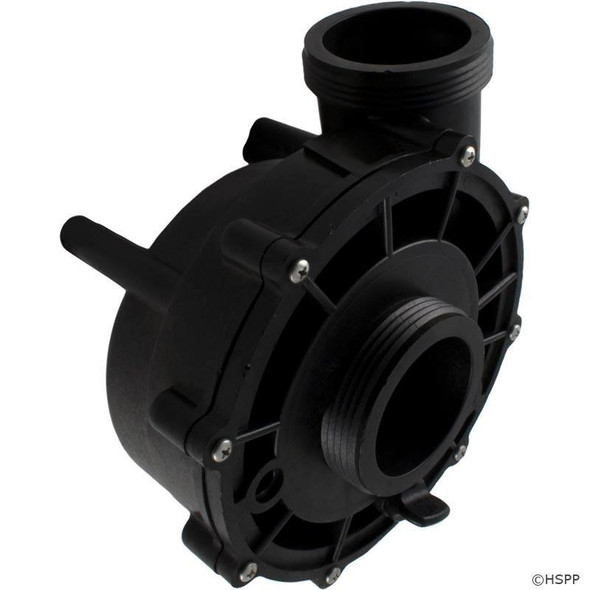

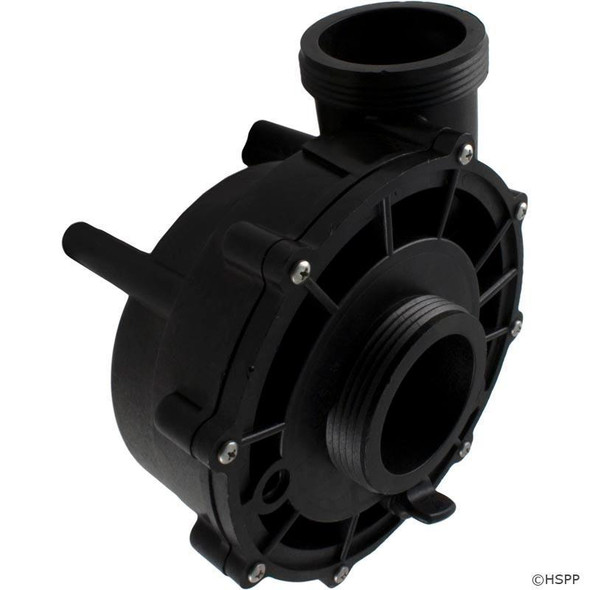

310-2470 Wet End, WW EX2 2.5hp 2"mbt 48fr Waterway EX2 Wet End

Side discharge, 2"mbt suction/discharge, 48 frame wet end for the Waterway EX2 pump. This wet end is used with a 3.0hp, 48 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90° to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws. Motor and unions sold separately.

RECOMMENDED PARTS:

35-126-1121 Motor, Century, 3.0 Horsepower, 230v, 2 Speed, 48 Frame

35-126-1123 Motor, Century, 3.0 Horsepower, 230v, 2 Speed, 48 Frame

88-375-1050 Lube Tube, Roper Products, 4oz, with PFTE

88-426-1000 Lube, U.S. Seal, 10ml Tube

88-426-1000 Lube, U.S. Seal, 10ml Tube
