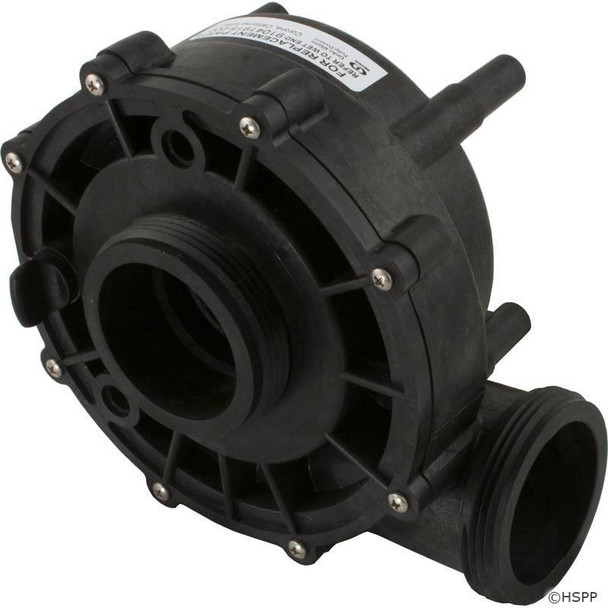

91041915-000 Wet End,Gecko AquaFlo XP2/XP2E 1.5hp, 2"mbt, 6.3"56fr AquaFlo/Gecko Wet End
Side discharge, 2"mbt suction/discharge, 56 frame wet end for XP2/XP2E pump. This wet end is used with a 2.0hp, 56 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90 degrees to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws.
Motor and unions sold separately.
In 2012, the manufacturer changed the way Aquaflo pumps are rated. These pumps are now assigned both an operational horsepower (ohp), and a total horsepower (thp) rating. Previous versions of these pumps used only the operational horsepower. If you are replacing an older Aquaflo pump, be sure to match the operational hp rating rather than the total hp.
RECOMMENDED PARTS:
35-126-1152 Motor, Century, 2.0 Horsepower, 230v, 2 Speed, 56 Y Frame
88-375-1050 Lube Tube, Roper Products, 4oz, with PFTE
89-402-1106 Pump Union, 2"Female Buttress Threadx2" Slip, wht Quantity 2
99-361-1095 Tool, Pool Tool, Impeller Wrench, Closed
99-361-1095 Tool, Pool Tool, Impeller Wrench, Closed
