Wet End, CMP 3.0hp 2"mbt 48/56fr (1)

Wet End, CMP 3.0hp 2"mbt 48/56fr

SKU:
34-605-1000
$111.00
Write a Review
Description
27203-300-000 Wet End, CMP 3.0hp 2"mbt 48/56fr Custom Molded Products Wet End

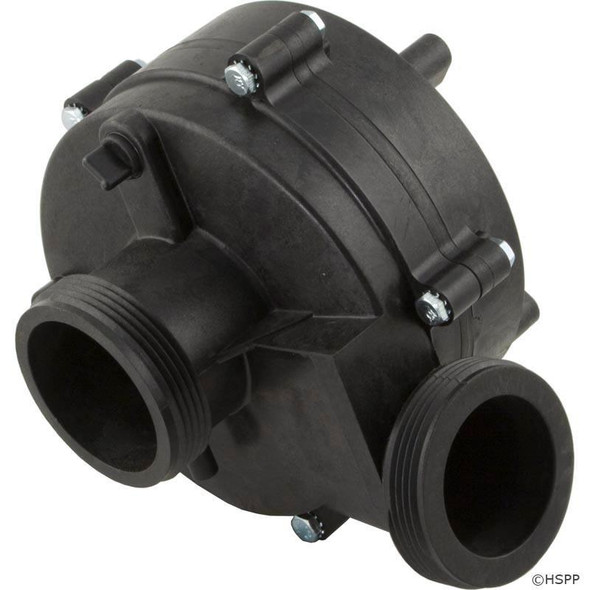

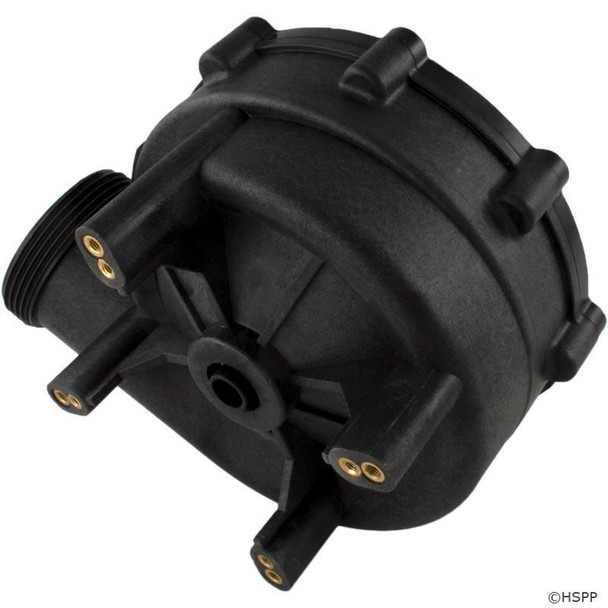

This is a generic version of the Aquaflo/Gecko XP2/XP2e Pump, Side discharge, 2"mbt suction/discharge, 48/56 frame wet end by CMP. This wet end may be used as a low cost replacement for a number of different spa pumps. This is an exact match for various AquaFlo XP2 models and will also replace Vico Ultimax, and Waterway Hi-Flo, EX2, and Super-Flo pump wet ends. This wet end is used with a 3.0hp, 48 or 56 frame thru-bolt style motor. The motor used may be either a single or dual speed. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws. Motor and unions sold separately.

RECOMMENDED PARTS:

35-126-1123 Motor, Century, 3.0 Horsepower, 230v, 2 Speed, 48 Frame

89-270-1166 Pump Union, 2" Female Buttress Thread x 2" Slip

90-423-5230 O-Ring, Buna-N, 2-1/2" ID, 1/8" Cross Section, Generic

99-361-1095 Tool, Pool Tool, Impeller Wrench, Closed

99-361-1095 Tool, Pool Tool, Impeller Wrench, Closed

99-361-1160 Tool, Pool Tool, Impeller Wedge, 48 Frame
