Description
Waterway Plastics
ME-40226-20
1-P240E52024 , 3721621 , 3721621-1D , 3M21621 , WW37216211D , WWP-10-1410

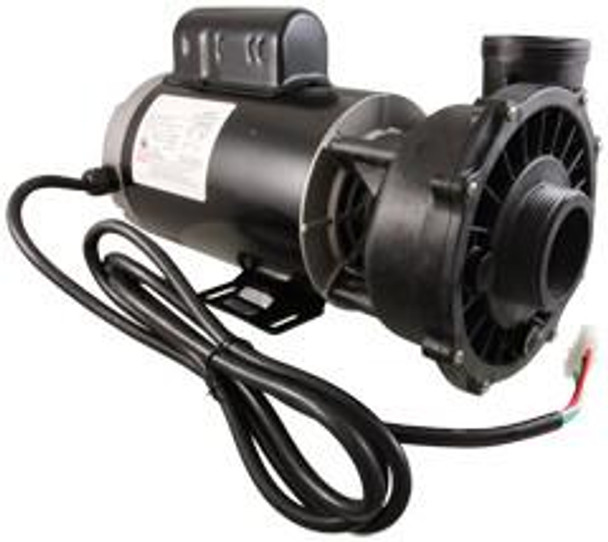

The Executive 56 Frame Spa Pump has an executive wet end designed for 56-Frame motors along with two double-shielded ball bearings with moisture-resistant grease for quieter operation and long life. The dual speed motors have insulated windings for increased efficiency and large, highly versatile 6-1/2" diameter wet end for higher head pressure. A split capacitor (start and run) allows for less energy consumption.
Spa Pump Features:
Spa Pump Features:
- Executive wet end designed specifically for 56-frame motors
- 56-frame motor for added strength, cooler operating temperature, and longer motor life
- Large 6-1/2" diameter wet end for higher head pressure
- 2" intake for improved flow performance and reduced noise
- Wet end can be rotated for easy installation
- Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
- Two speed motors have four sets of insulated windings for increased efficiency
- Dimensions (H x W x L): 9.08" x 8.05" x 14.775"
- Available in 1 to 5Hp and in single or dual speed (SEE THE AVAILABLE STYLES TAB)
- California Title 20 Compliant
| Motor Voltage | 230v |
| Speed | 2 Speed (2-Spd) |
| Motor Amperage/Wattage | 12.0A/4.4A |
| Horsepower | 4.0hp |
| Manufacturer | Waterway |
| Pump Model | Executive |
| Suction Pipe Size | 2" |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Style | Side |
| Discharge Pipe Size | 2" |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Style | Side |
| Motor Frame | 56 Frame Thru-Bolt |
