Original Heater:
This original heater has been discontinued. This retro fit kit includes all of the parts needed to change to the new heater.
The old style 9 pin connector is no longer available. Also needed are the two receptacles to plug the substitute heater into, and a new hi limit sensor. They are part #'s 60-355-1060 and 60-355-1066. The new hi limit sensor is part # 59-355-1017
Kit Includes:
Heater:

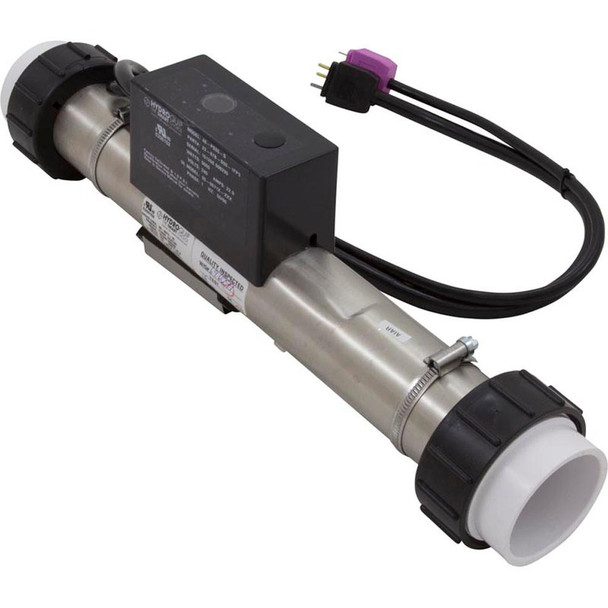

46-355-1477 Hydroquip Heater, Flo Thru, HQ PS, 230V, 5.5KW, W/ short cord, Slide (24" cord)
or
46-355-1486 Hydroquip Heater, Flo Thru, HQ PS, 230V, 5.5KW, W/ long cord, Slide (60" cord)
HydroQuip Platinum Series, 5.5kw 115v/230v flo-thru heater. The tube measures 15" x 2" and comes complete a pressure switch. For use exclusively with the HydroQuip Platinum series electronically switched control systems featuring slide heater technology.
Receptacles:
60-355-1060, Receptacle, HQ, VH, Molded, 12/3, Black
and
60-355-1066, Receptacle, HQ, Switched ACC, Molded, 18/3 SS VH, Lt. Violet
High Limit Sensor:
59-355-1017, Sensor, Hi Limit, HQ, 76", 1/4" Diameter, 4 Pin, VersiHeat
They did a great job of creating a replacement heater for my "no longer available" heater. I explained what I needed. It took them one day to create a complete replacement kit with all the retro wiring. I received it in two days, and it took about 20 minutes to complete installation. Excellent service.
