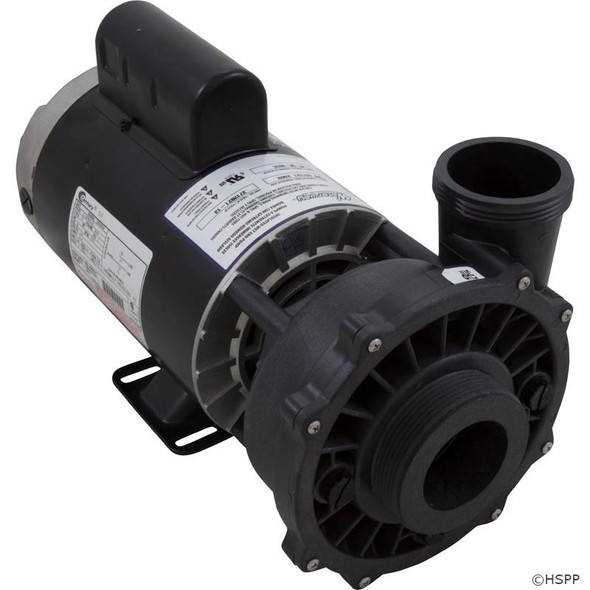

Pump, WW Exec, 5.0hp, 230v, 2-Spd, 56fr, 2-1/2" x 2", OEM, 3722021-13

SKU:
3722021-13
$629.00
Write a Review
 Waterway Plastics
 3722021-13
 1-P250E5252024 301921 3722021 3M22021 5039-511

When matching pumps always use AMPERAGE rather than Horsepower. Many times the labeled Horsepower does not accurately represent actual horsepower.

The Executive 56 Frame Spa Pump has an executive wet end designed for 56-Frame motors along with two double-shielded ball bearings with moisture-resistant grease for quieter operation and long life. The dual speed motors have insulated windings for increased efficiency and large, highly versatile 6-1/2" diameter wet end for higher head pressure. A split capacitor (start and run) allows for less energy consumption.

Spa Pump Features:
  • Executive wet end designed specifically for 56-frame motors
  • 56-frame motor for added strength, cooler operating temperature, and longer motor life
  • Large 6-1/2" diameter wet end for higher head pressure
  • 2-1/2" intake for improved flow performance and reduced noise
  • Wet end can be rotated for easy installation
  • Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
  • Two speed motors have four sets of insulated windings for increased efficiency
  • Dimensions (H x W x L): 9.08" x 8.05" x 14.775"
Motor Voltage 230v
Speed 2 Speed (2-Spd)
Motor Amperage/Wattage 16.4A/4.8A
Horsepower 5.0hp
Manufacturer Waterway
Pump Model Executive
Suction Pipe Size 2-1/2"
Suction Connection Type Male Buttress Thread (mbt)
Suction Style Center
Discharge Pipe Size 2"
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Style Side
Motor Frame 56 Frame Thru-Bolt
Drain Plug Location 3,6,9 o`clock
