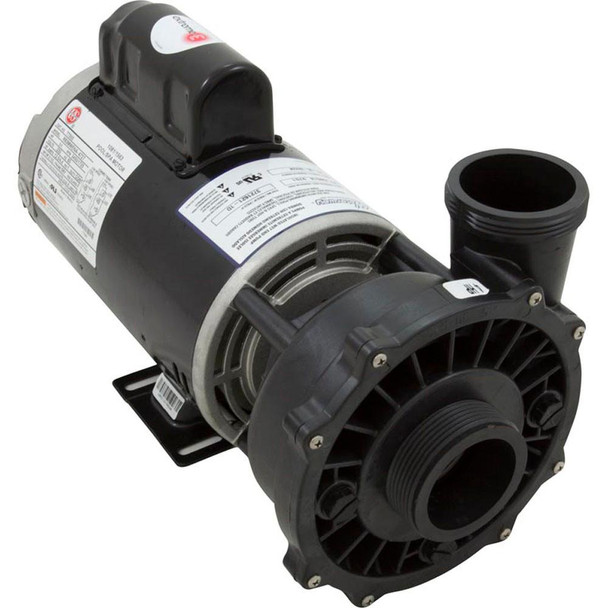

Pump, WW Exec, 4.0hp, 230v, 2-Spd, 56fr, 2", OEM, 3721621-1D

SKU:
34-270-3594
$549.00
Write a Review
 Waterway Plastics
 3721621-1D
 1-P240E52024 301914 3721621 3M21621 5039-408 WW37216211D WWP-10-1410

The Executive 56 Frame Spa Pump has an executive wet end designed for 56-Frame motors along with two double-shielded ball bearings with moisture-resistant grease for quieter operation and long life. The dual speed motors have insulated windings for increased efficiency and large, highly versatile 6-1/2" diameter wet end for higher head pressure. A split capacitor (start and run) allows for less energy consumption.


Spa Pump Features:

  • Executive wet end designed specifically for 56-frame motors
  • 56-frame motor for added strength, cooler operating temperature, and longer motor life
  • Large 6-1/2" diameter wet end for higher head pressure
  • 2" intake for improved flow performance and reduced noise
  • Wet end can be rotated for easy installation
  • Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
  • Two speed motors have four sets of insulated windings for increased efficiency
  • Dimensions (H x W x L): 9.08" x 8.05" x 14.775"
  • California Title 20 Compliant
Manufacturer Waterway
Pump Model Executive
Speed 2 Speed (2-Spd)
Motor Voltage 230v
Drain Plug Location 3,6,9 o`clock
Suction Style Center
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 2"
Discharge Style Side
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 2"
Horsepower 4.0hp
Motor Frame 56 Frame Thru-Bolt
Motor Amperage/Wattage 12.0A/4.4A
