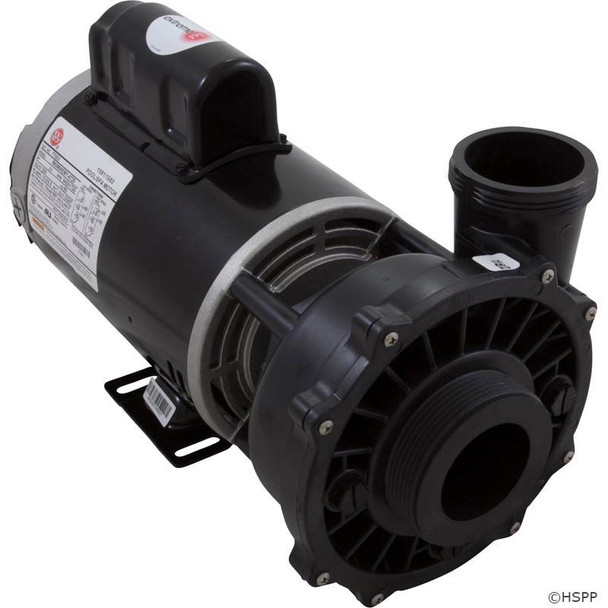

Pump, WW Exec, 3.0hp Century, 230v, 2-Spd, 56fr, 2-1/2" x 2"

3721221-13HZW Pump, WW Exec, 3.0hp Century, 230v, 2-Spd, 56fr, 2-1/2" x 2"The Executive 56 Frame Spa Pump has an executive wet end designed for 56-Frame motors along with two double-shielded ball bearings with moisture-resistant grease for quieter operation and long life. The dual speed motors have insulated windings for increased efficiency and large, highly versatile 6-1/2" diameter wet end for higher head pressure. A split capacitor (start and run) allows for less energy consumption.

Spa Pump Features:

• Executive wet end designed specifically for 56-frame motors
• 56-frame motor for added strength, cooler operating temperature, and longer motor life
• Large 6-1/2" diameter wet end for higher head pressure
• 2" intake for improved flow performance and reduced noise
• Wet end can be rotated for easy installation
• Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
• Two speed motors have four sets of insulated windings for increased efficiency
• Dimensions (H x W x L): 9.08" x 8.05" x 14.775"
• Available in 1 to 5Hp and in single or dual speed (SEE THE AVAILABLE STYLES TAB)

  Attention:

  • Motors and Pumps with Horizon numbers ending with W or N carry a 1 year warranty from date of manufacture.

RECOMMENDED PARTS:

60-320-1060 Pump Cord, H-Q, 14/4 x 31, AMP-4 Male(R/B/W with G)

60-355-1028 Cord, H-Q, P1, 2 Speed, Molded/Lit, 48", 115v/230v, 15A, Red

60-555-3000 Bonding Wire, Generic, 36"

88-375-1050 Lube Tube, Roper Products, 4oz, with PFTE

88-375-1050 Lube Tube, Roper Products, 4oz, with PFTE

89-270-1166 Pump Union, 2" Female Buttress Thread x 2" Slip

89-270-1190 Pump Union, 2-1/2" Female Buttress Thread, 2" Slip

90-423-5230 O-Ring, Buna-N, 2-1/2" ID, 1/8" Cross Section, Generic

90-423-5232 O-Ring, Buna-N, 2-3/4" ID, 1/8" Cross Section, Generic

99-242-1100 Tool, Clamp-On Multimeter, Tenma, with Sensor and Leads
