Description
Waterway Plastics
3410830-1A
304853 , 3410830 , 5039-206 , 806105069856

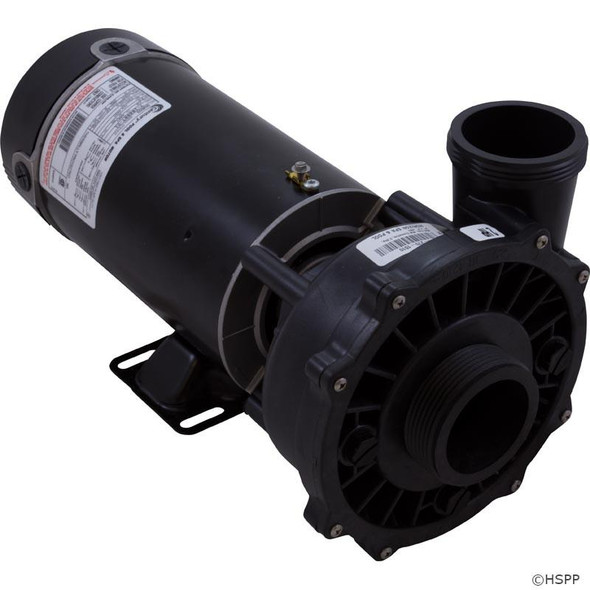

The Waterway Executive 48 pump is thermally protected to extend the life expectancy of the motor with a highly versatile wet end.
Spa Pump Features:
- Executive wet end designed specifically for 48-frame motors
- Large 6-1/2" diameter wet end for higher head pressure
- 2" intake and discharge
- Wet end can be rotated for easy installation
- Thermally protected to extend life expectancy of motor
- Dimensions (H x W x L): 8.34" x 8.13" x 15.70"
| Motor Voltage | 115v/230v |
| Speed | 1 Speed (1-Spd) |
| Motor Amperage/Wattage | 20.0A/10.0A |
| Horsepower | 2.0hp |
| Manufacturer | Waterway |
| Pump Model | Executive |
| Suction Pipe Size | 2" |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Style | Center |
| Discharge Pipe Size | 2" |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Style | Side |
| Motor Frame | 48 Frame Thru-Bolt |
| Drain Plug Location | 3,6,9 o`clock |
