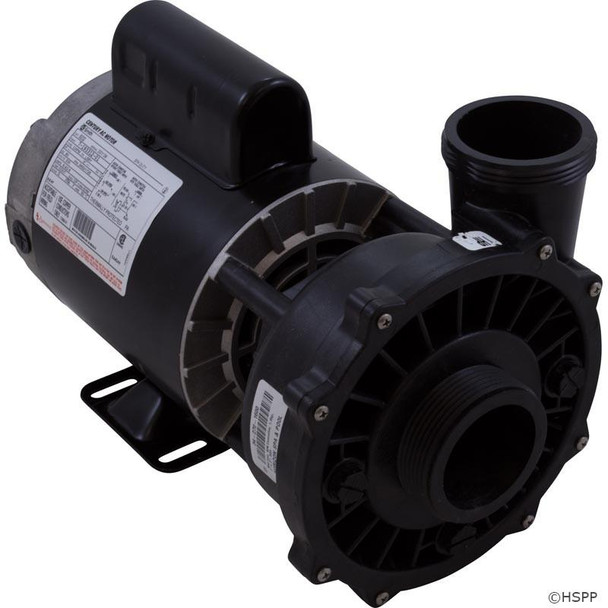

Pump,WW Exec,1.0hp,230v,2-Spd,56fr,2"

Pump,WW Exec,1.0hp,230v,2-Spd,56fr,2" The Executive 56 Frame Spa Pump has an executive wet end designed for 56-Frame motors along with two double-shielded ball bearings with moisture-resistant grease for quieter operation and long life. The dual speed motors have insulated windings for increased efficiency and large, highly versatile 6-1/2" diameter wet end for higher head pressure. A split capacitor (start and run) allows for less energy consumption.

Spa Pump Features:

• Executive wet end designed specifically for 56-frame motors
• 56-frame motor for added strength, cooler operating temperature, and longer motor life
• Large 6-1/2" diameter wet end for higher head pressure
• 2" intake for improved flow performance and reduced noise
• Wet end can be rotated for easy installation
• Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
• Two speed motors have four sets of insulated windings for increased efficiency
• Dimensions (H x W x L): 9.08" x 8.05" x 14.775"
• Available in 1 to 5Hp and in single or dual speed (SEE THE AVAILABLE STYLES TAB)

  RECOMMENDED PARTS:

  60-320-1060 Pump Cord, H-Q, 14/4 x 31, AMP-4 Male(R/B/W with G)

  60-355-1028 Cord, H-Q, P1, 2 Speed, Molded/Lit, 48", 115v/230v, 15A, Red

  60-555-3000 Bonding Wire, Generic, 36"

  88-375-1050 Lube Tube, Roper Products, 4oz, with PFTE

  88-375-1050 Lube Tube, Roper Products, 4oz, with PFTE

  89-270-1166 Pump Union, 2" Female Buttress Thread x 2" Slip

  90-423-5230 O-Ring, Buna-N, 2-1/2" ID, 1/8" Cross Section, Generic

  99-242-1100 Tool, Clamp-On Multimeter, Tenma, with Sensor and Leads
