Pump, WW Ex2, 3.0 SPL,230v,2-Spd,48fr,2",OEM, 3421020-1U

SKU:
34-270-3528
Availability:
Usually Ships Same Day/Next Day
$599.00
Write a Review

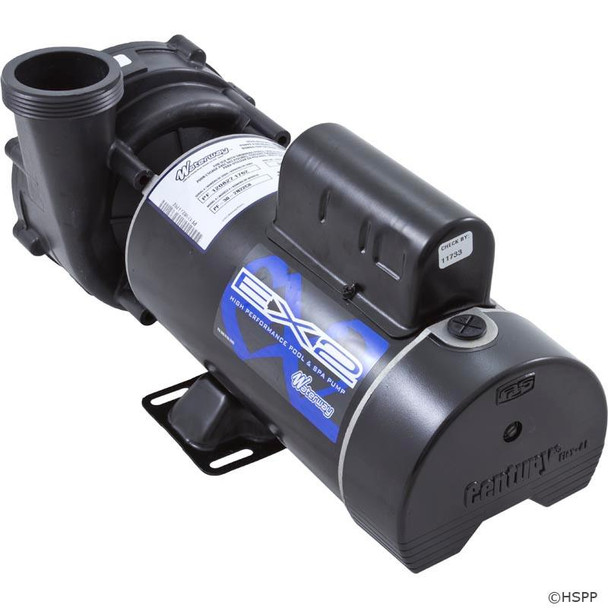

3421020-1U Pump,WW Ex2,2.5hp,230v,2-Spd,48fr,2",OEM The EX2 delivers high performance with its horsepower reaching up to 3HP. With two speed settings, you can save energy and control the water flow.



Motor Voltage 230v
Speed 2 Speed (2-Spd)
Motor Amperage/Wattage 11.0A/3.3A
Horsepower 3.0SPL
Manufacturer Waterway
Pump Model EX2
Suction Pipe Size 2"
Suction Connection Type Male Buttress Thread (mbt)
Suction Style Center
Discharge Pipe Size 2"
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Style Side
Motor Frame 48 Frame Thru-Bolt
Drain Plug Location 4,6,9 o`clock



Spa Pump Features:

  • True continuous rated horsepower, available in 1.5, 2.0, 2.5, and 3.0HP styles (SEE AVAILABLE STYLES TAB)
  • 48 or 56 frame, single or dual speed (energy saving)
  • Use more jets per pump
  • Same physical size as Aqua-Flo XP2, XP2e (fits within the same volume envelope)
  • Can be used as substitute or retrofit to Aqua-Flo model XP2 or XP2e pumps and similar pumps and wet ends
  • Made in USA from highest quality materials with UL and CUL certifications
  • CE and TUV certification on export pumps to ensure product performance
  • Equipped with high efficiency electrical motors, custom designed for spa applications

    RECOMMENDED PARTS:

    59-270-1010 Motor Base, Waterway, Self Aligning, 48 Frame, Rubber

    60-320-1060 Pump Cord, H-Q, 14/4 x 31, AMP-4 Male(R/B/W with G)

    60-355-1028 Cord, H-Q, P1, 2 Speed, Molded/Lit, 48", 115v/230v, 15A, Red

    60-555-3000 Bonding Wire, Generic, 36"

    60-555-3000 Bonding Wire, Generic, 36"

    88-375-1050 Lube Tube, Roper Products, 4oz, with PFTE

    89-270-1166 Pump Union, 2" Female Buttress Thread x 2" Slip

    90-423-5230 O-Ring, Buna-N, 2-1/2" ID, 1/8" Cross Section, Generic

    99-242-1100 Tool, Clamp-On Multimeter, Tenma, with Sensor and Leads

1 Year
