Description

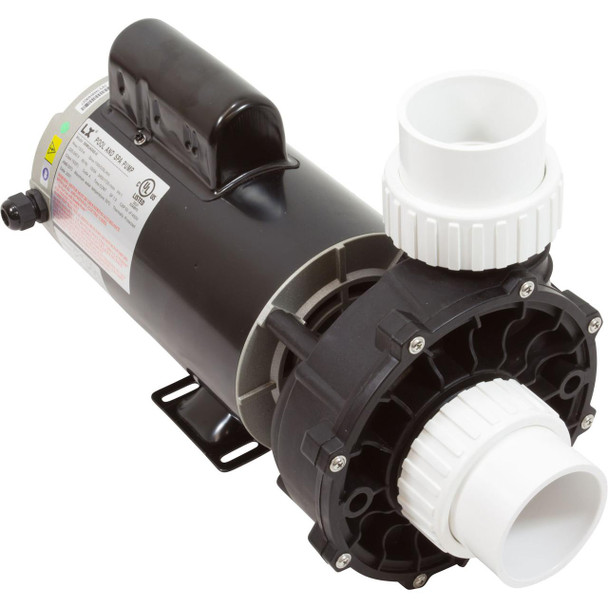

This model LX pump is commonly used to replace Aqua Flo XP2e, 5.0 HP 56 frame pump, 2 speed, 2-1/2" inlet, 2-1/2" discharge pumps
Dimensions: 17-1/16"L x 8-11/16"W x 9-1/2"H
| Motor Voltage | 230v |
| Speed | 2 Speed (2-Spd) |
| Motor Amperage/Wattage | 15.0A/5.0A |
| Horsepower | 5.0hp |
| Manufacturer | Lingxiao (LX) Pump |
| Pump Model | 56WUA |
| Suction Pipe Size | 2-1/2" |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Style | Center |
| Discharge Pipe Size | 2-1/2" |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Style | Side |
| Motor Frame | 56 Frame Thru-Bolt |
| Drain Plug Location | 3,6,9 o`clock |
