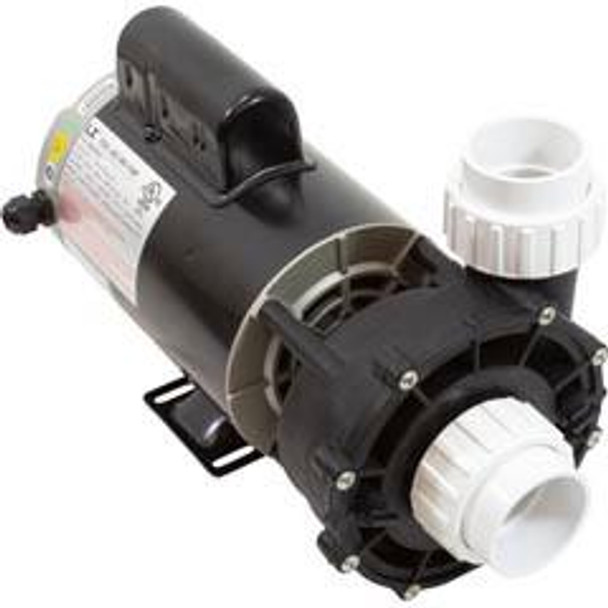

This model LX pump is commonly used to replace Aqua Flo XP2e, 4.0 HP 56 frame pump and Energy Saver 430-0052, 2 speed, 2" inlet, 2" discharge pumps
Dimensions: 16-7/16"L x 8-3/4"W x 8-7/8"H
Motor Voltage | 230v |
Speed | 2 Speed (2-Spd) |
Motor Amperage/Wattage | 12.0A/4.4A |
Horsepower | 4.0hp |
Manufacturer | Lingxiao (LX) Pump |
Pump Model | 56WUA |
Suction Pipe Size | 2" |
Suction Connection Type | Male Buttress Thread (mbt) |
Suction Style | Center |
Discharge Pipe Size | 2" |
Discharge Connection Type | Male Buttress Thread (mbt) |
Discharge Style | Side |
Motor Frame | 56 Frame Thru-Bolt |
Drain Plug Location | 3,6,9 o`clock |
