Description

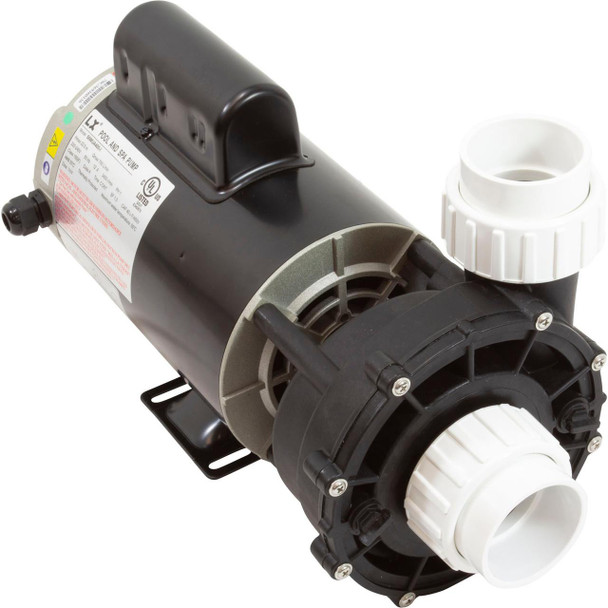

This model LX pump is commonly used to replace Aqua Flo XP2e, 4.0 HP 56 frame pump - 1 speed, 2" inlet, 2" discharge pumps
Dimensions: 16-7/16"L x 8-3/4"W x 8-7/8"H
| Motor Voltage | 230v |
| Speed | 1 Speed (1-Spd) |
| Motor Amperage/Wattage | 12.0A |
| Horsepower | 4.0hp |
| Manufacturer | Lingxiao (LX) Pump |
| Pump Model | 56WUA |
| Suction Pipe Size | 2" |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Style | Center |
| Discharge Pipe Size | 2" |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Style | Side |
| Motor Frame | 56 Frame Thru-Bolt |
| Drain Plug Location | 3,6,9 o`clock |
Related Products
Related Products
Wet End, LX 56WUA, 4.0hp, 1-Spd/2-Spd, 2", 56 Frame
$114.00
This listing is for the LX56WUA400 wet end only
Manufacturer
Lingxiao (LX) Pump
56WUA400-IIWE
