Description

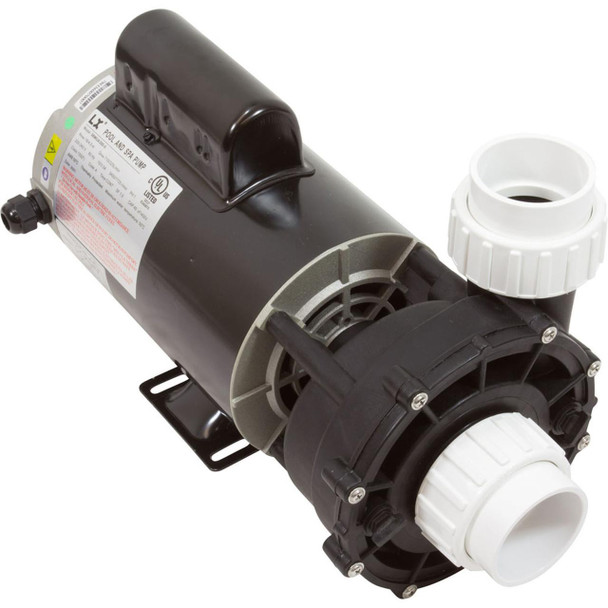

Lingxiao (LX) Pump
56WUA300-II
1019801-03 , 6500-367 , 953080
Dimensions: 16-7/16"L x 8-3/4"W x 8-7/8"H
| Motor Voltage | 230v |
| Speed | 2 Speed (2-Spd) |
| Motor Amperage/Wattage | 10.0A/3.5A |
| Horsepower | 3.0hp |
| Manufacturer | Lingxiao (LX) Pump |
| Pump Model | 56WUA |
| Suction Pipe Size | 2" |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Style | Center |
| Discharge Pipe Size | 2" |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Style | Side |
| Motor Frame | 56 Frame Thru-Bolt |
| Drain Plug Location | 3,6,9 o`clock |
