390592

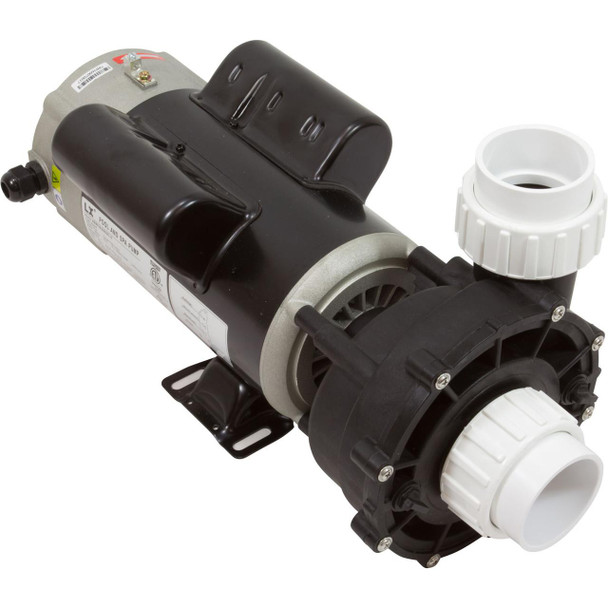

This model LX pump is commonly used to replace Aqua Flo XP2e 2.0 HP 230 Volt 48 frame pump, 2 speed, 2" inlet, 2" discharge pumps
Dimensions: 17-1/2"L x 8-7/16"W x 8-7/16"H
Motor Voltage |
230v |
Speed |
2 Speed (2-Spd) |
Motor Amperage/Wattage |
10.0A/3.0A |
Horsepower |
2.0hp |
Manufacturer |
Lingxiao (LX) Pump |
Pump Model |
48WUA |
Suction Pipe Size |
2" |
Suction Connection Type |
Male Buttress Thread (mbt) |
Suction Style |
Center |
Discharge Pipe Size |
2" |
Discharge Connection Type |
Male Buttress Thread (mbt) |
Discharge Style |
Side |
Motor Frame |
48 Frame Thru-Bolt |
Drain Plug Location |
3,6,9 o`clock |
