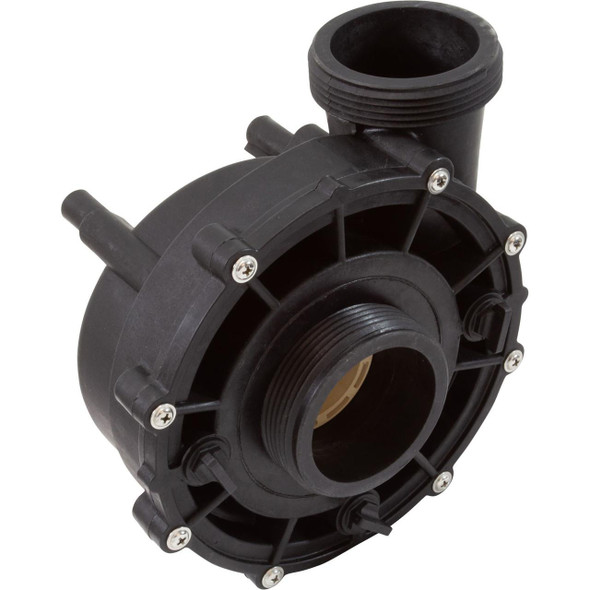

This model LX pump is commonly used to replace Aqua Flo XP2e, 1.0 HP 115 Volt 48 frame pump, 2-speed, 2" inlet, 2" discharge pumps
Dimensions: 15-3/16"L x 8-7/16"W x 8-7/16"H
Motor Voltage | 115v |
Speed | 2 Speed (2-Spd) |
Motor Amperage/Wattage | 10.3A/3.8A |
Horsepower | 1.0hp |
Manufacturer | Lingxiao (LX) Pump |
Pump Model | 48WUA |
Suction Pipe Size | 2" |
Suction Connection Type | Male Buttress Thread (mbt) |
Suction Style | Center |
Discharge Pipe Size | 2" |
Discharge Connection Type | Male Buttress Thread (mbt) |
Discharge Style | Side |
Motor Frame | 48 Frame Thru-Bolt |
Drain Plug Location | 3,6,9 o`clock |
