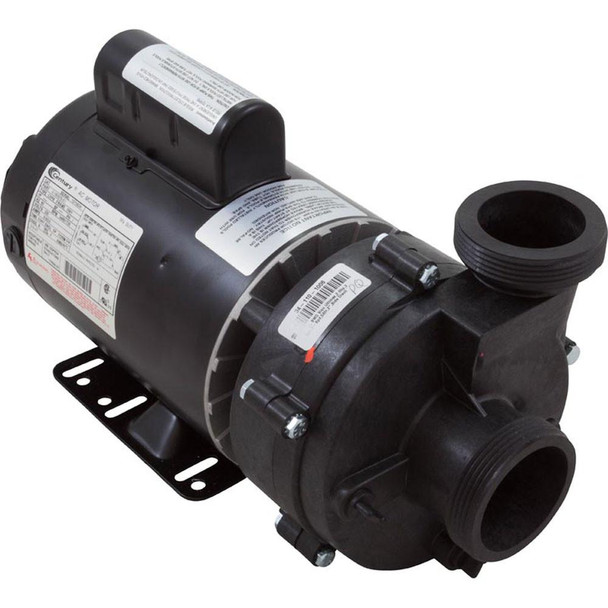

Pump, BWG Vico Ultimax, 2.0hp, 230v, 2-Spd, 56fr, 2", Side Disch - 1016012

SKU:
1016012

REPLACED W. 34-138-1016

Write a Review

# 34-110-1006

Substitute Item: 34-430-2524WAlternate Item: 34-430-2524N    help
 Balboa Water Group
 1016012
 951833

Balboa Water Group/Vico pumps provide long life, excellent performance, value pricing and configuration flexibility all in a cost-effective package. With flow rates that can exceed 230 gallons per minute, Vico pumps are ideal for value- priced applications in any size spa. With lower price points, ease of installation, high flow rates, and energy efficient packages, Vico pumps offer the options you need and spa owners truly appreciate.

Spa Pump Features:
  • Compact 56 frame design
  • Dual Speed Pump (can be wired for one speed)
  • Energy efficient and whisper quiet
  • Multi-direction volute mounting options deliver a range of plumbing configurations
  • All seals are carbon ceramic with Viton elastomers for long-lasting performance. Easily enduring prolonged heat and chemical exposure

  • California Title 20 Compliant
Manufacturer Vico/Balboa
Pump Model Ultimax
Speed 2 Speed (2-Spd)
Motor Voltage 230v
Suction Style Center
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 2"
Discharge Style Side
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 2"
Horsepower 2.0hp
Motor Frame 56 Frame Thru-Bolt
Motor Amperage/Wattage 8.0A/3.0A
