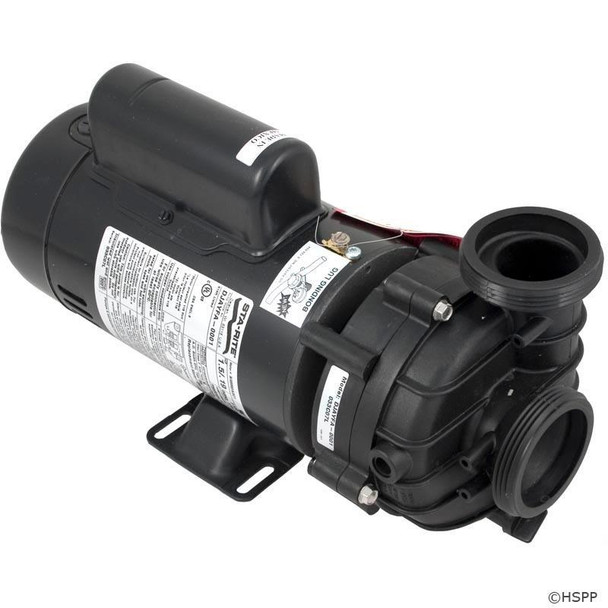

DJAYFA-0001 Dura Jet Spa Pump, Sta Rite, 1.5HP, 2 spd, 115v, Low Amo, 2" SD.
This is an OEM pump, not aftermarket. You can find aftermarket, less expensive pumps in "Related Products" below.
This part replaces: 223152078066 , 5051-112 , DJAYFA-0001 , DJAYFA-0002 , DJAYFA-0151M
The Sta-Rite 'DJ' series spa pump is designed to efficiently circulate water in spas and hot tubs. These pumps are excellent performers and have gained an industry distinction for being durable, reliable, quiet, trouble free and efficient. The center suction wetend is adjustable, allowing for a horizontal or vertical discharge position. Be aware that plumbing configuration may effect performance.
Note: No lubrication or regular maintenance are needed.
| Complete Pump Type | Portable Spa Pump |
| Speed | 2 Speed (2-Spd) |
| Motor Voltage | 115v |
| Drain Plug Location | 3,6,9 o`clock |
| Pump to Motor Foot Types | 3 |
| Suction Auxiliary Port | 3/8" barb (b) 2ea |
| Suction Style | Center |
| Suction Connection (Physical Dimension) | 3-1/16"od |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 2" |
| Discharge Auxiliary Port | 3/8" barb (b) 1ea |
| Discharge Style | Side |
| Discharge Connection (Physical Dimension) | 3-1/16"od |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 2" |
| Horsepower | 1.5hp |
| Motor Frame | 48 Frame Thru-Bolt |
| Motor Amperage/Wattage | 13.0A/3.7A |
| Manufacturer | Sta-Rite/Pentair/Balboa |
| Pump Model | Dura-Jet-DJ |
| Manufacturer Impeller Number | 17400-0121 |
| Volute Fastening Type | 4 Bolts 4 Nuts |
| Volute/Sealplate Number | 17400-0003 |
