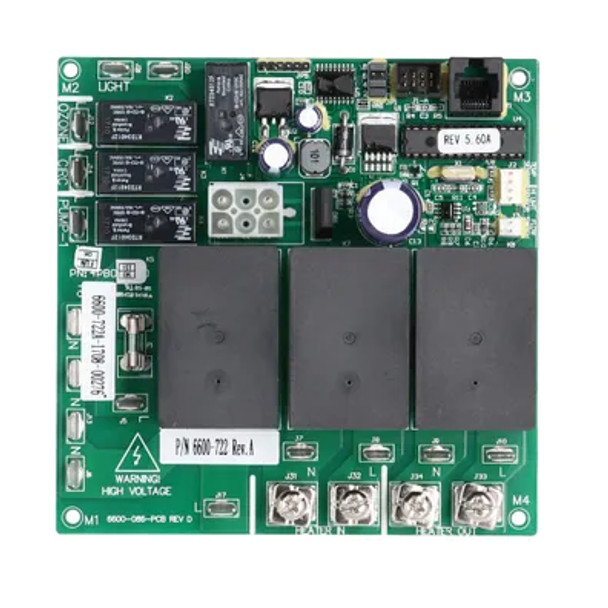

Circuit Board, Sundance / Jacuzzi, LX-10, Rev 5.03+, (2002 +), w/3 Big Relays, 1-Pump, No Circ Pump

Write a Review
SKU:
6600-722
MPN:
6600-722
$699.00

Description

Sundance/Jacuzzi 6600-722
Built with you in mind

This Circuit Board is manufactured by Sundance/Jacuzzi.

  • LX-10, Rev 5.03+, 1-Pump, No Circ
  • 6600-722 Circuit Board, Sundance / Jacuzzi, LX-10, Rev 5.03+, (2002 +), w/3 Big Relays, 1-Pump, No Circ Pump



    • 6600-722. Was: 6600-089, 6600-289, 3-60-0098

Additional Information

Spa Brands Sundance/Jacuzzi

Alternate Part Numbers


  • 6600-042
  • 6600-089
  • 6600-289
  • SD6600-722
  • Used on these Sundance® Spas Models without a Circulation Pump:

  • 2017+ 680 1-pump Prado and Prado 5
  • 2006+ 680 1-Pump: Denali® and Tacoma®
  • 2003-2005 Del Sol Redondo and Hermosa
  • 2000-2002 Sweetwater Board: Aruba, Bali, and Cyprus



    Replaces



  • 2000-2001 Sweetwater Board:
  • 2000-2001 Aruba, Bali, and Cyprus and
  • 6600-082,
  • 6600-089 Circuit Board.
  • LX-10 Series 3-60-0098
  • 6600-289, 6600-042 with eprom logic chip 5.+ Jacuzzi® Spas Circuit Board for:
  • J-210
  • J-220 Confirms UV counter settings.
  • The Circuit Board must have the jumpers configured on the board to the settings on your spa, also the programming for your spa needs to be done.
  • Jumper 1-2: With Jumper on: 15Amp (if system is 120 Volt only). 30Amp (if system is a 4 wire 120/240 Volt system) 40Amp (if system is a 4 wire 120/240 Volt system)
  • Jumper 3-4: With Jumper on: 2 jet pumps (do not confuse the small Circ pump as 1 pump). Without Jumper: 1 Jet pump
  • Jumper 7-8: With Jumper on: Centigrade. With Jumper off : Fahrenheit Readout on panel.
