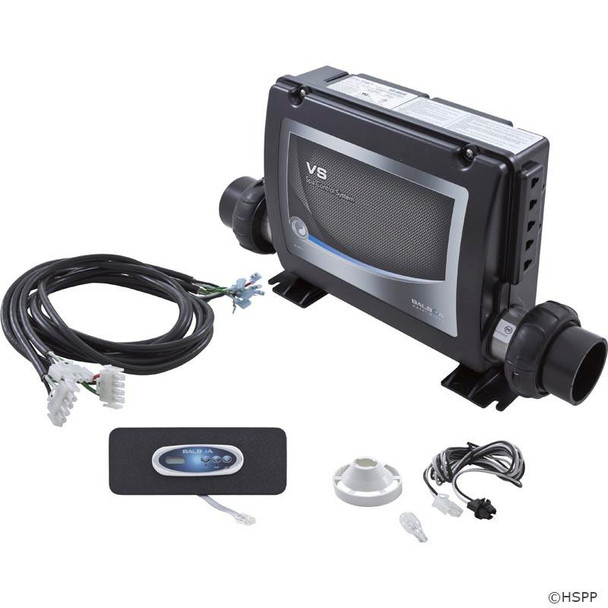

Balboa VS500Z System w/Mini-Oval Topside- Runs 1 Pump-Light-Ozone

Balboa VS500Z System w/Mini-Oval Topside- Runs 1 Pump-Light-Ozone

SKU:
54219-Z

REPLACED W/ 54220KIT

Write a Review
Description

Balboa Water Group VS500Z Control System

Features:

  • 115/230v Pump 1 circuit
  • 115/230v Ozone circuit
  • 115/230v Circ Pump circuit (30GPM minimum)
  • 1.4/5.5kW heater
  • 12v spa light circuit
  • Patented M7™ technology
  • Plumb on pressure or vacuum side
  • Component cords included
  • Control panel included 58-138-1166
  • US & Canadian safety approvals

The Value Series (VS) family of Hot Tub Control Systems were designed using Balboa's patented M7™ temperature and flow sensor technology and a new universal control platform. The systems have a plastic enclosure to eliminate water intrusion. Connectors are built onto the circuit board minimizing wires and simplifying service. The different models have controls for a single two-speed pump or an additional blower or pump. All models feature a convertible 115/230v power supply, a 1.4/5.5kW heater and can support mini, duplex, or standard digital control panels.



Control Box Dimensions

Height Width Depth
10-9/16" 12-1/4" 4-1/2"



Number Of Appliances 1
Manufacturer Balboa Water Group
Model VS500
Supply Voltage 115v/230v
Heater Type Fixed - Bottom
Heater Wattage 1.375kW/5.5kW
Topside Included Duplex Mini Oval
Circ Pump Ready Yes 115v/230v
Auxiliary Topside Ready Yes
Fiber Optic No
Accessory Ready Yes
Wi-Fi Compatible No
50/60 HZ 60Hz
