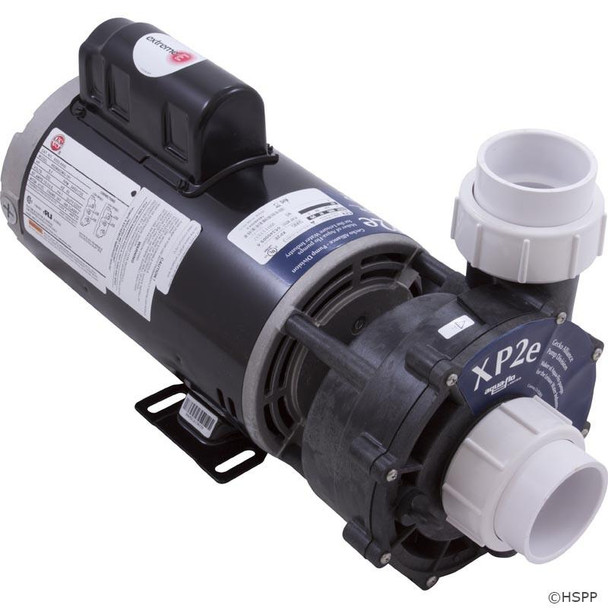

Aqua Flo by Gecko, spa pump is a part of the XP2e series. It is designed to handle a large number of jets with efficiency. This spa pump is comparable to the XP2 pump, but has greater flow and efficiency.
05340009-5040
Also used in place of: PUM22901092
Specs:
| Complete Pump Type | Portable Spa Pump |
| Speed | 2 Speed (2-Spd) |
| Motor Voltage | 230v |
| Drain Plug Location | 4,6,9 o`clock |
| Pump to Motor Foot Types | 9 |
| Suction Style | Center |
| Suction Connection (Physical Dimension) | 3-1/16" od |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 2" |
| Discharge Style | Side |
| Discharge Connection (Physical Dimension) | 3-1/16" od |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 2" |
| Horsepower | 4.0hp |
| Motor Frame | 56 Frame Thru-Bolt |
| Motor Amperage/Wattage | 15.0A/4.8A |
| Manufacturer | AquaFlo/Gecko |
| Pump Model | Flo-Master XP2e |
| Manufacturer Impeller Number | 91695401 |
| Volute Fastening Type | 8 Screws |
| Volute/Sealplate Number | 92770705 |
