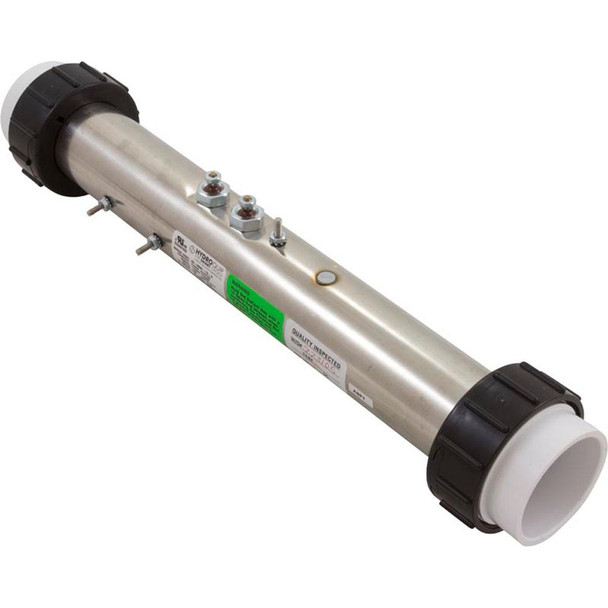

Caldera/Nordic/Gecko S-Class
Stainless steel 2-1/4" x 15" 5.5kW/230v replacement flow thru heater with aluminum ground bar, 1/8"npt pressure switch, (1) 10-32 x 1/2" stud. 2" heater tailpieces, split nuts and gaskets included. Pressure switch not included
| Housing Configuration | Straight |
| Heater Length | 15" |
| Lead End Terminal Location | 5-3/4" |
| Threaded Tap Orientation | 12 O`Clock |
| Threaded Tap Location | 9-7/8" From Leading End |
| Kilowatts | 1.375kW, 5.5kW |
| Voltage | 115v, 230v |
| Sensor Stud Orientation | None |
| Mounting Stud Type | Fixed |
| Heater Size | 2" |
| Heater Application | Caldera, Gecko, Nordic |
